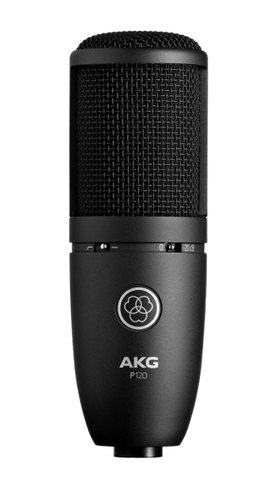

AKG P120 Side-Address Cardioid Condenser Microphone

Part of AKG's Project Studio microphone series, the P120 is a cardioid condenser microphone with a 2/3" diaphragm that is designed for recording vocals and instruments. The P120 is a solidly built, all-metal body microphone that can withstand the rigors of daily use and will deliver clear and accurate sound thanks to its low-mass diaphragm.

The P120 also features two physical switches on the front of the microphone, a -20dB attenuation pad allowing for a max SPL of 150dB and a 6dB/octave high-pass filter at 300 Hz to help keep low frequencies in control.

A microphone stand adapter is included to allow for the P120 to be attached to any standard microphone stand.

AKG P120 Specifications:

• Capsule: 2/3" True Condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: 24 mV/Pa (-32.5 dBV)
• Max. SPL for 0.5% THD: 130dB without pad engaged, 150dB with -20dB pad engaged
• Equivalent Noise Level to IEC60286-4: 19 dBA
• Signal to Noise Ratio: 75 dBA (RE 1PA)
• Preattenuation Pad: -20 dB
• Bass Cut Filter: 300 Hz, 6dB/octave
• Electrical Impedance: < /= 200 Ohms
• Recommended Load Impedance: >/= 1000 Ohms
• Connector: 3-Pin XLR (Pin 2 Hot)
• Phantom Powering: 48V +/- 4V to IEC61938
• Current Consumption: < /= 3 mA
• Temperature Range: 14°F to 140°F (-10°C to +60°C)
